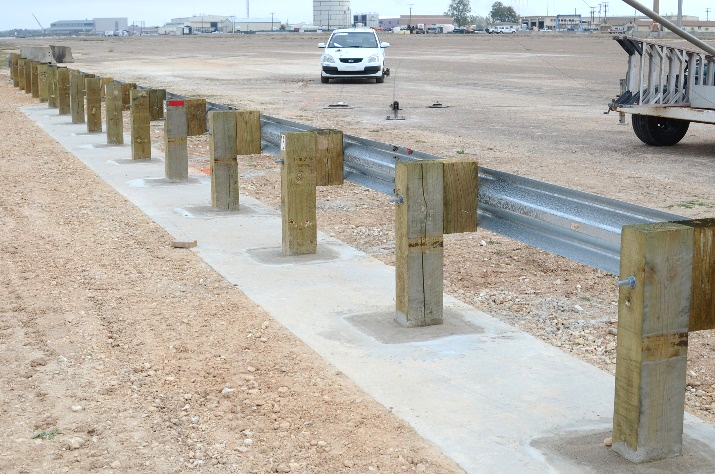

31-Inch W-Beam Guardrail With Wood and Steel Post In Concrete Mow Strip
Report Number(s): 608551-1-4
Description: The test installation consisted of a 31-inch tall W-beam guardrail with structural steel posts installed in compacted base, with a Texas Department of Transportation (TxDOT) downstream anchor terminal (DAT) on each end, for a total installation length. "31-Inch W-Beam Guardrail With Wood and Steel Post In Concrete Mow Strip"
Test Level: 3
MASH Test Number: 3-10, 3-11
Proprietary/Non-proprietary: Non-proprietary
Pass/Fail: Pass
Evaluation: Full-Scale Crash Testing
Sponsor: Roadside Safety Research Program Pooled Fund
Test Article Description
Height: 31"
Rail Type: W-Beam
Rail Thickness: 12-Gauge
Post Type: Timber & W6 x 8.5
Material: Wood & Steel
Post Total Length: 72"
Post Spacing: 6' 3"
Blockout Type: Wood
Blockout Depth: 8"
Aesthetic: No
Application: Other
Special Configuration: None
Report(s):
