[Failed]32-inch Tall Portable Concrete Barrier Pinned on Concrete Pavement

Report Number(s): 607911-3

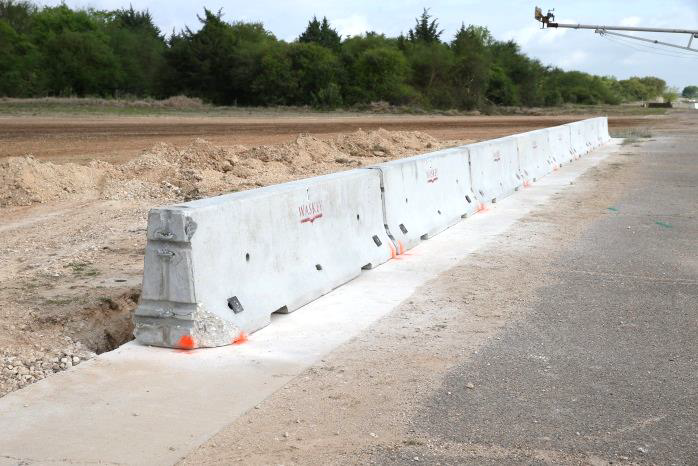

Description: Eight 12 ft-6 inch long precast concrete F-shape barrier segments connected end-to-end. The F-shape segments were 32 inches tall, 24 inches wide at the base, and 9½ inches wide at the top.

Test Level: 3

Barrier Type: F-Shape

MASH Test Number: 3-11

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Fail

Evaluation: Full-Scale Crash Testing

Sponsor: Roadside Safety Pooled Fund

Test Article Description

Height: 32"

Section Length: 12'6"

Connection Type: Pin and Loop

Ground Connection: Pinned

Deflection: 31.4"
