Evaluation of New Jersey TCB Performance under MASH TL-3

Report Number(s): TRP-03-224-10

Description: Evaluation of reducing barrier deflections through the use of pinning every barrier section on the back-side toe of the New York State's New Jersey-shape Temporary Concrete Barrier.

Test Level: 3

Barrier Type: New Jersey

MASH Test Number: 3-11

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Testing + Engineering Analysis

Sponsor: New York State Department of Transportation

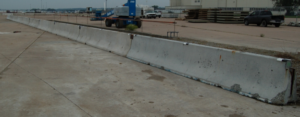

Test Article Description

Height: 32"

Section Length: 20'

Connection Type: Steel Rods

Ground Connection: Pinned

Deflection: 20.5"
