MASH Test 3-11 Evaluation of Combination Traffic-Pedestrian-Bicycle Bridge Railing

Report Number(s): 611971-02-1

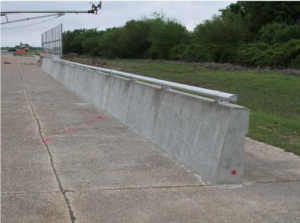

Description: The installation consisted of four sections of concrete barrier. All four barriers had a height of 36 inches, and were secured to the concrete apron using Hilti RE 500 V3 epoxy anchor bars embedded to a depth of 6 inches. A single, half-elliptical, aluminum rail supported by short aluminum posts spaced at 96 inches was mounted on these barriers.

Test Level: 3

Barrier Type: Single Slope (10.8 deg)

MASH Test Number: 3-11

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Washington State Department of Transportation

Test Article Description

Height: 42"

Test Article Description

Material: Combination

Mounting Type: n/a

Aesthetic: No

See Through: No

Retrofit: No

Combo. (Veh/Ped): Yes
