MASH TL-3 Unreinforced Single-Slope Concrete Median

Report Number(s): TRP-03-388-18

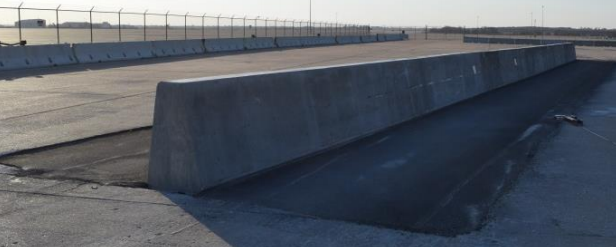

Description: The barrier was designed with a height of 42 in. , a base width of 28 in., and top width of 12 in. . The tarmac surface was milled down 1 in. to accommodate the barrier and asphalt pad.

Test Level: 3

Barrier Type: Single Slope

Barrier Type: Cast-in-place

System Type: Concrete Barrier

MASH Test Number: 3-11

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Testing + Engineering Analysis

Sponsor: Ohio Department of Transportation

Test Article Description

Ground Connection: Anchored

Test Article Description

Application: Median

Test Article Description

Height: 42"

Connection Type: None

Aesthetic: No

Scupper: No

Barrier Material: Concrete
