Median Barrier Gate

Report Number(s): 9-1002-2

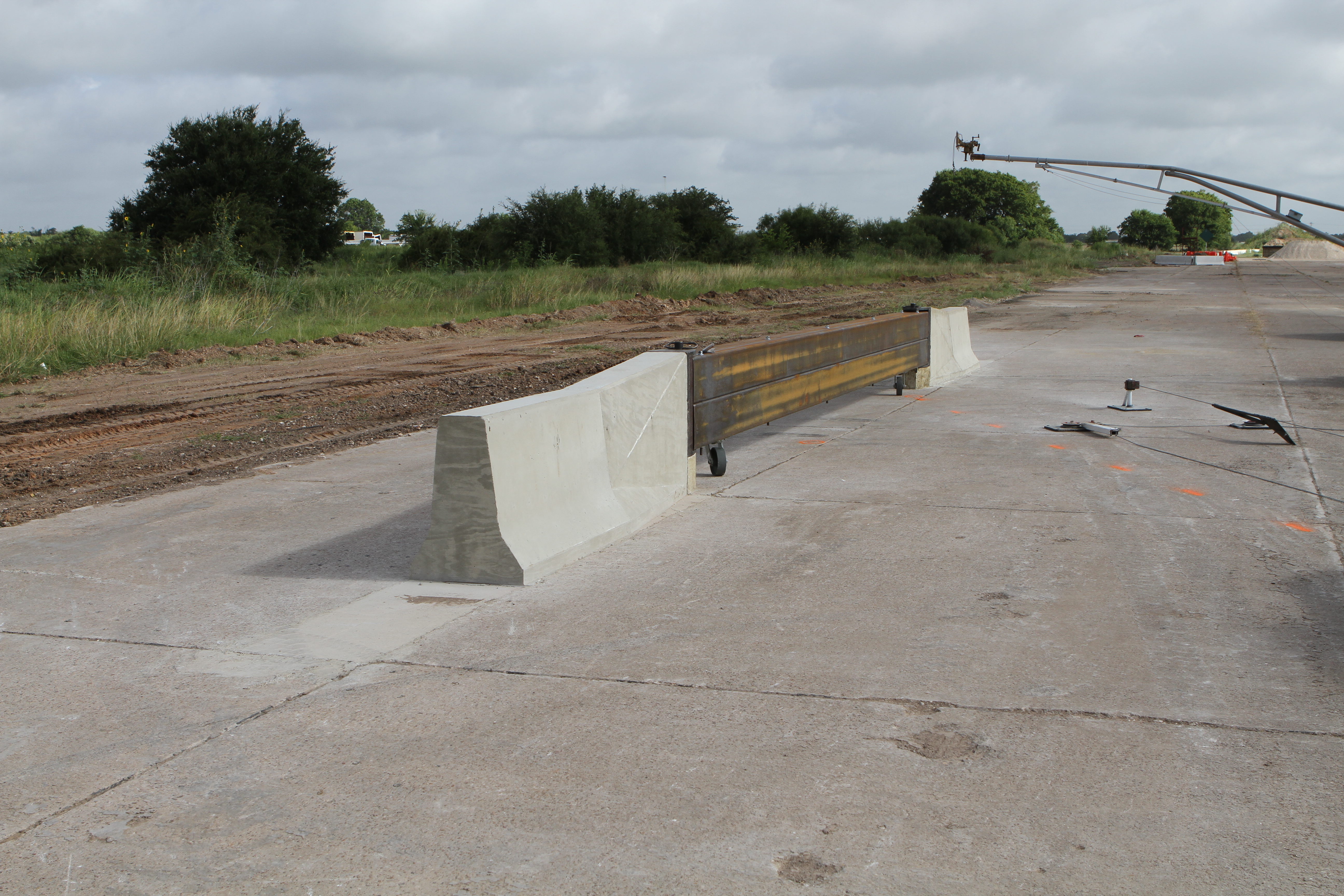

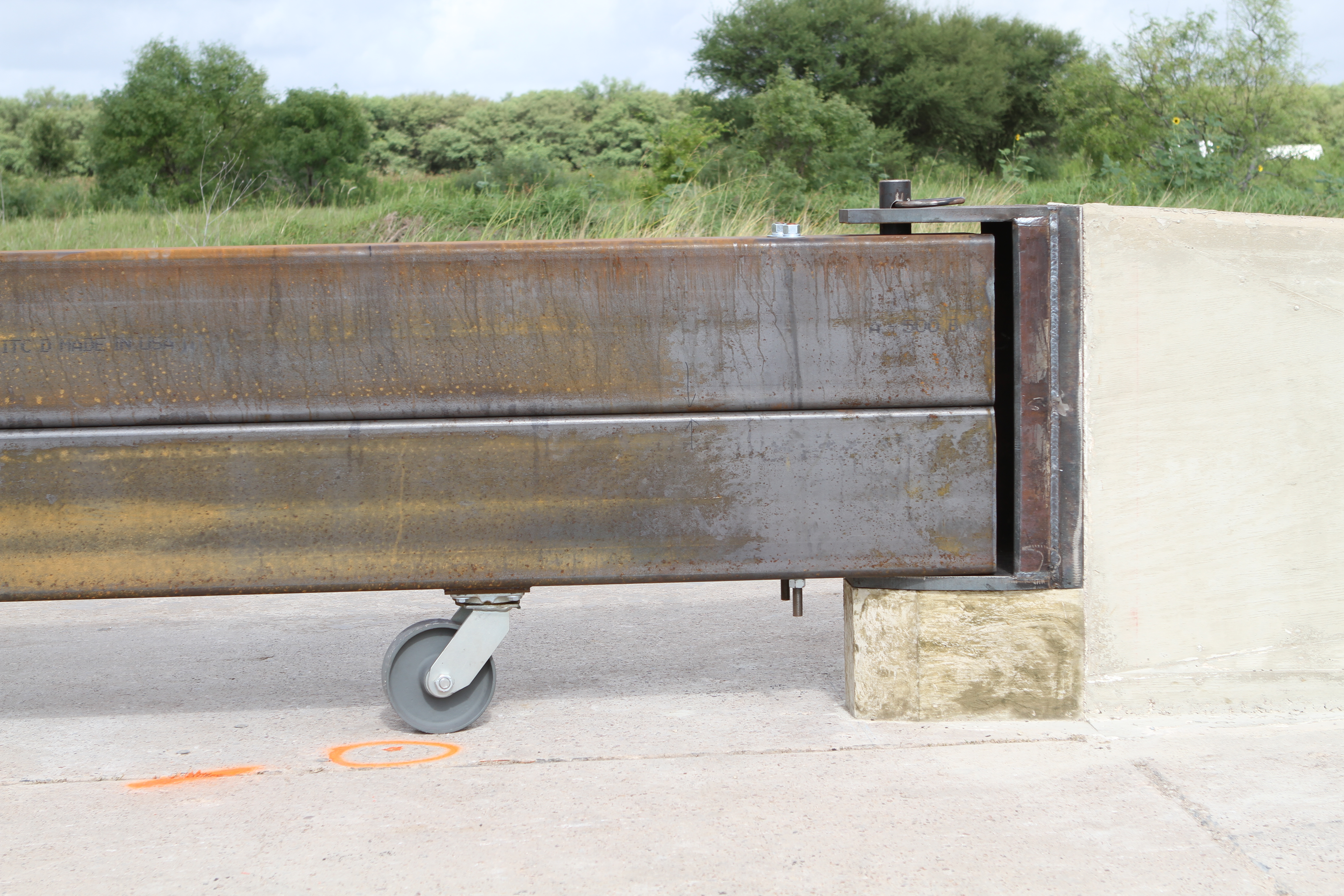

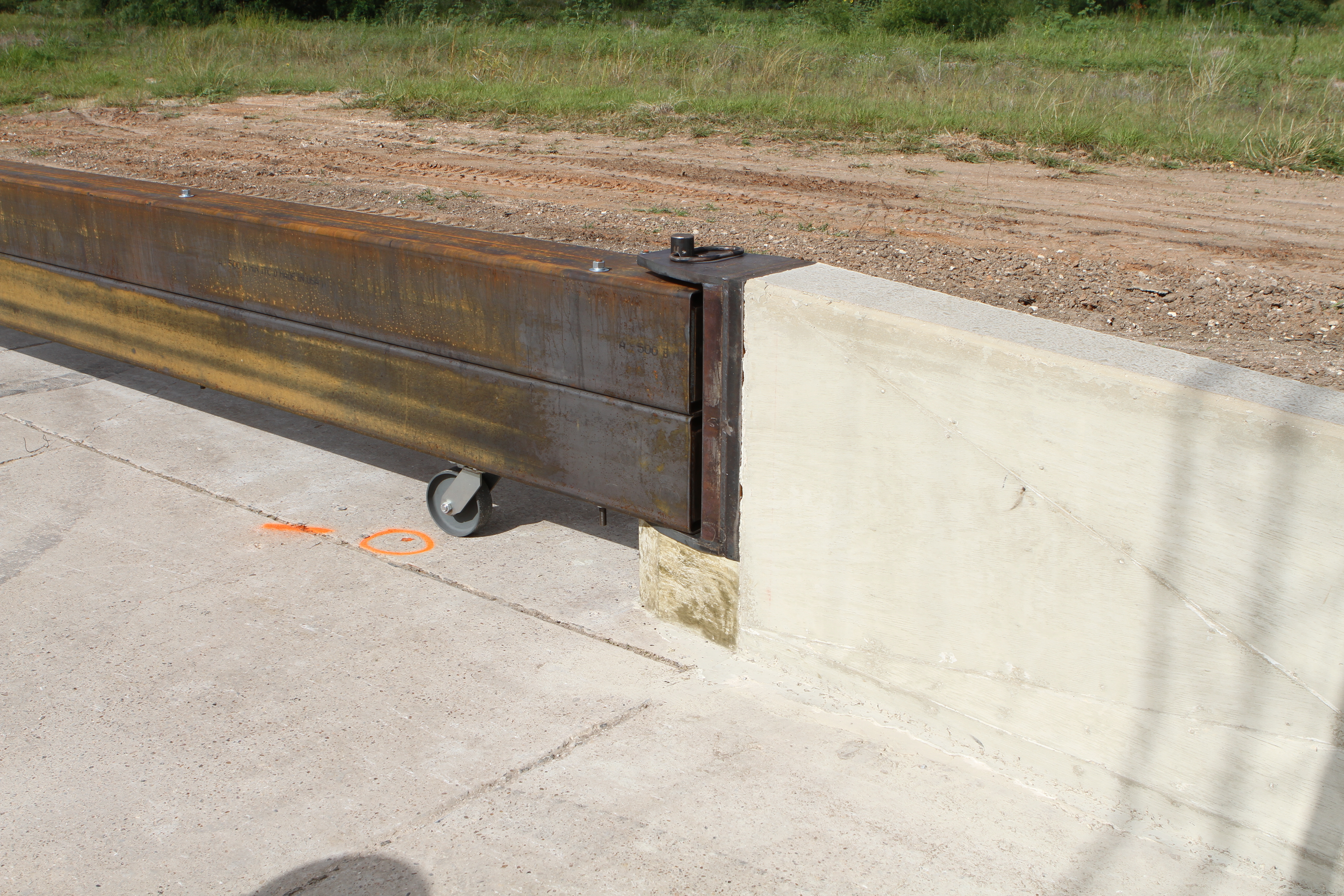

Description: Two 10-ft cast-in-place concrete barriers with 30-ft long median barrier gate spanning between them

Test Level: 3

Barrier Type: Median Barrier

MASH Test Number: 3-11, 3-20, 3-21

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Texas Department of Transportation

Test Article Description

Height: 32"

Top Base: 9.5"

Bottom Base: 24"

Ground Connection: Anchored

Test Article Description

Application: Median
