[FAILED] MGS Offset 8 ft behind 6-in. High Curb
Report Number(s): TRP-03-221-09

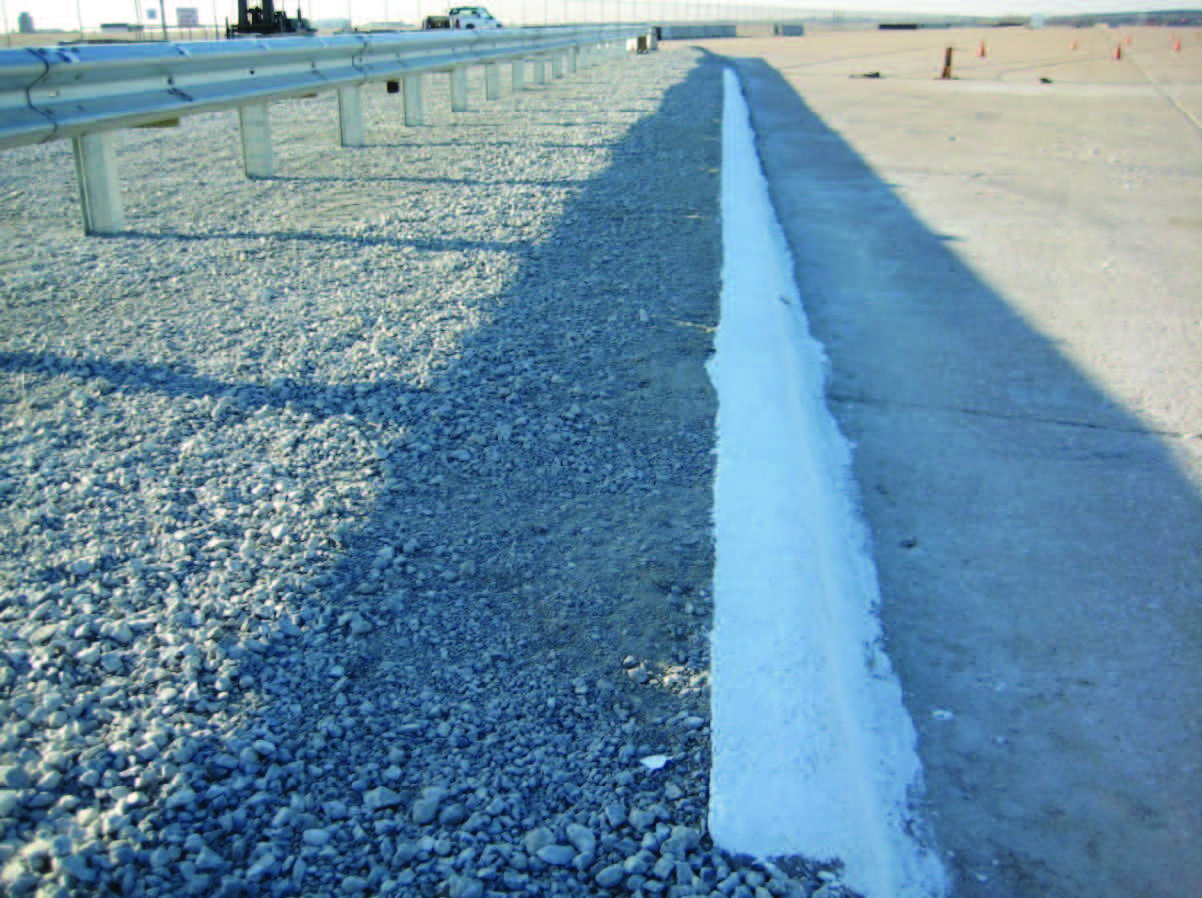

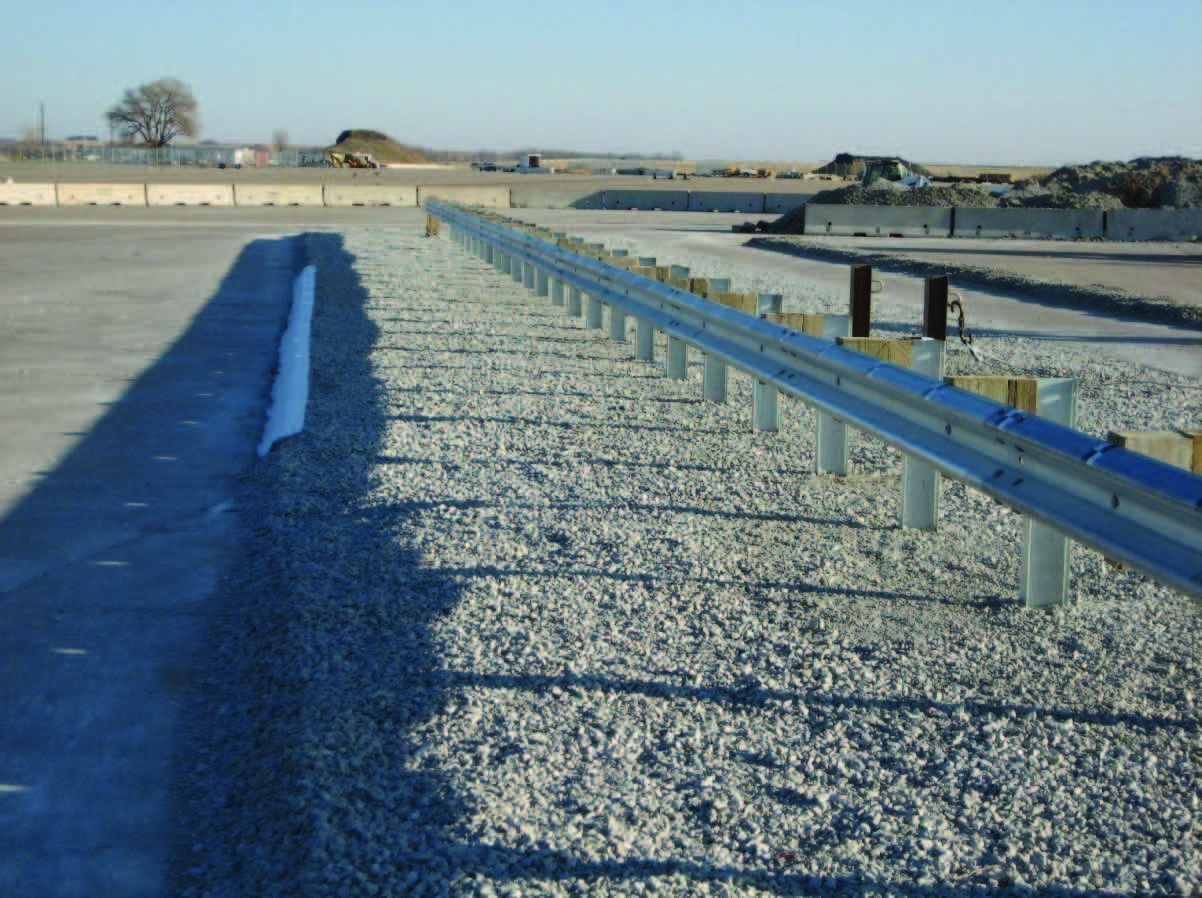

Description: [Failed] MGS guardrail supported by steel posts and positioned 8 ft behind a 6-in. tall AASHTO Type B curb.
Test Level: 3
MASH Test Number: 3-11
Proprietary/Non-proprietary: Non-proprietary
Pass/Fail: Fail
Evaluation: Full-Scale Crash Testing
Sponsor: Midwest States’ Regional Pooled Fund Program
Test Article Description
Height: 31"
Rail Type: W-Beam
Rail Thickness: 12-Gauge
Post Type: W6 x 8.5
Material: Steel
Post Total Length: 72"
Post Spacing: 6' 3"
Blockout Type: Wood
Blockout Depth: 12"
Aesthetic: No
Special Configuration: Curb
