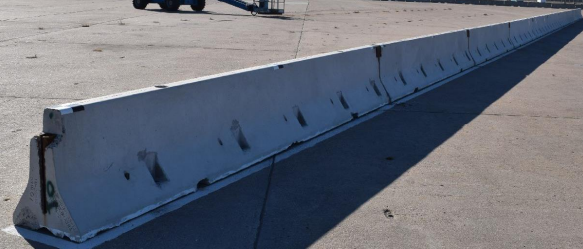

New Jersey’s Portable Concrete Barrier with a Free-Standing Configuration and Grouted Toes

Report Number(s): TRP-03-371-18

Description: 32-inch tall 20-ft long NJDOT PCBs with a free-standing configuration and grouted toes, connected using connection key.

Test Level: 3

Barrier Type: New Jersey

MASH Test Number: 3-11

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Testing + Engineering Analysis

Sponsor: New Jersey Department of Transportation

Test Article Description

Height: 32"

Section Length: 20'

Connection Type: Steel Rods

Ground Connection: Free Standing

Deflection: 40.7
