ST-10 Bridge Rail

Report Number(s): CA15‐0918

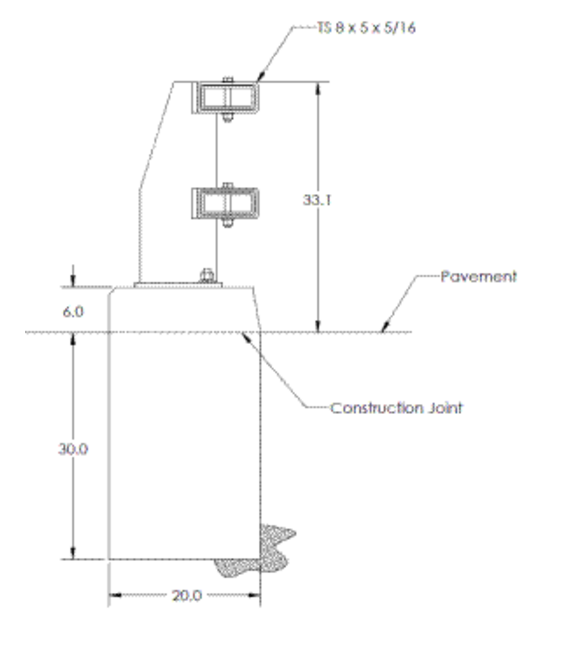

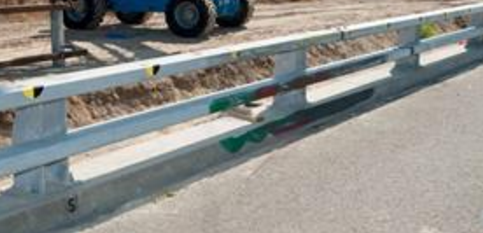

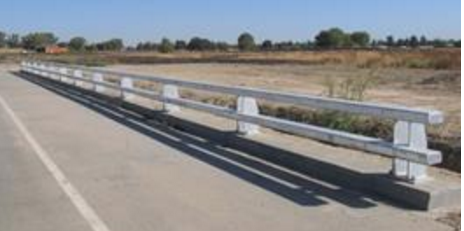

Description: Failed ST‐10 Bridge Rail on a 30" x 20" trench footing foundation with a 6 inch curb and a 3:1 slope 36" behind the article.

Test Level: 3

Barrier Type: Aesthetic

MASH Test Number: 3-11

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Fail

Evaluation: Testing + Engineering Analysis

Sponsor: California Department of Transportation

Test Article Description

Height: 33.1"

Test Article Description

Material: Combination

Mounting Type: Curb

Aesthetic: Yes

See Through: Yes

Retrofit: No

Combo. (Veh/Ped): No
