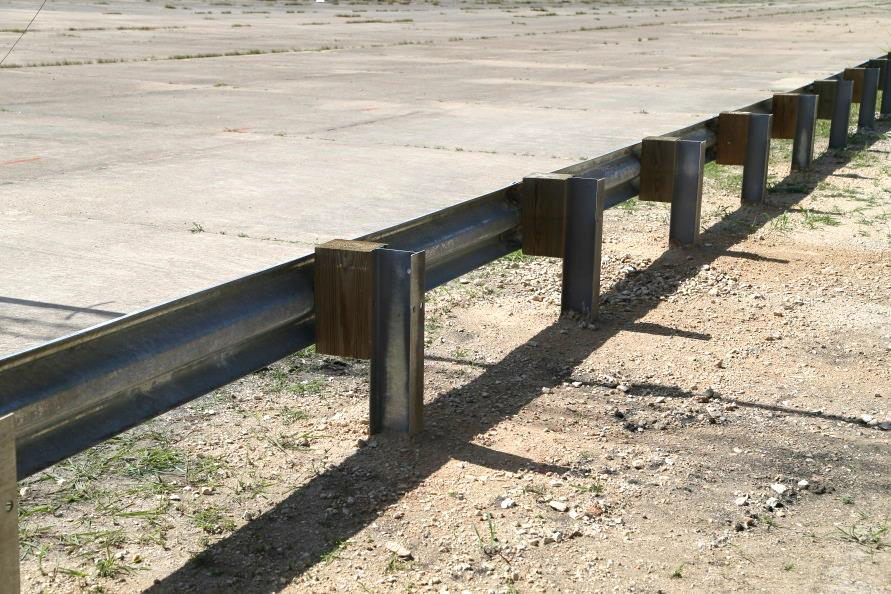

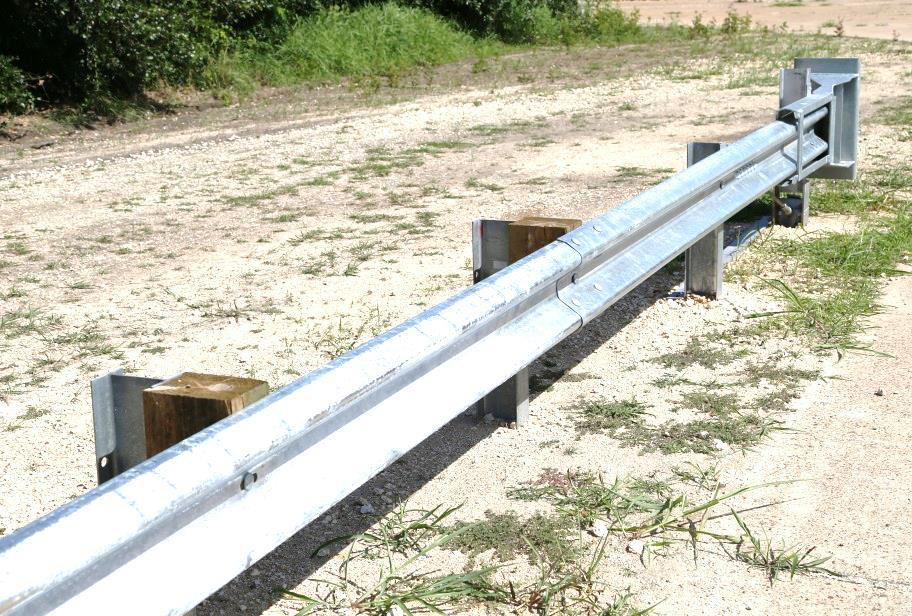

TL-2 Strong-Post W-Beam Guardrail with 24-inch Height

Report Number(s): 602361-1-2

Description: 24-inch tall W-beam guardrail system in MASH compacted strong soil with a standard 37 ft 6 inch ET-PLUS end terminal on each end

Test Level: 2

MASH Test Number: 2-11

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Testing + Engineering Analysis

Sponsor: Office of Eastern Federal Lands Highway Division

Test Article Description

Height: 24"

Rail Type: W-Beam

Rail Thickness: 12-Gauge

Post Type: W6 x 8.5

Material: Steel

Post Total Length: 72"

Post Spacing: 6' 3"

Blockout Type: Wood

Blockout Depth: 8"

Aesthetic: No

Application: Other

Special Configuration: None
