TL-2 Strong-Post W-Beam Guardrail with 25-inch Height
Report Number(s): 602361-1-2

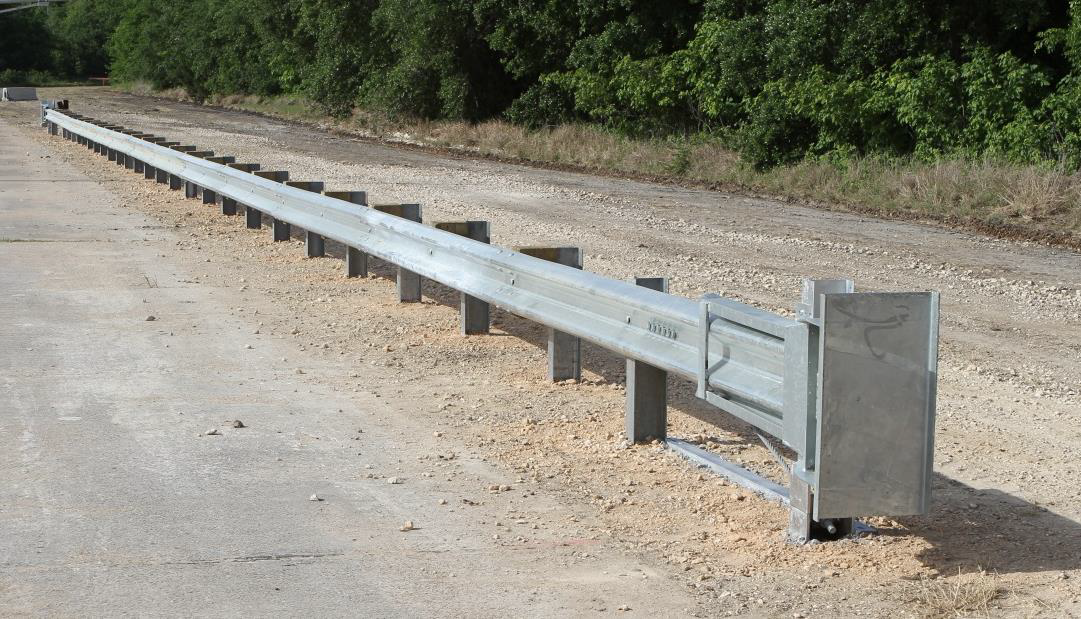

Description: 25-inch tall W-beam guardrail system in MASH compacted strong soil with a standard 37 ft 6 inch ET-PLUS end terminal on each end
Test Level: 2
MASH Test Number: 2-11
Proprietary/Non-proprietary: Non-proprietary
Pass/Fail: Pass
Evaluation: Testing + Engineering Analysis
Sponsor: Office of Eastern Federal Lands Highway Division

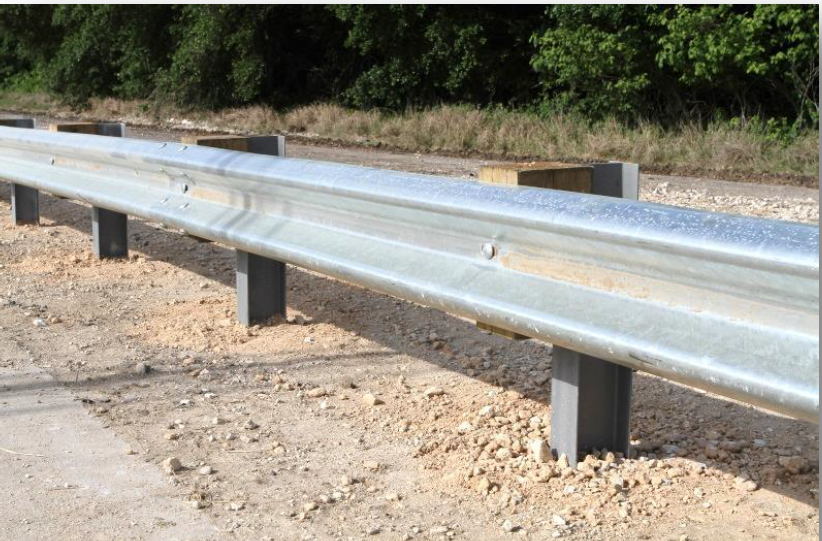

Test Article Description
Height: 25"
Rail Type: W-Beam
Rail Thickness: 12-Gauge
Post Type: W6 x 8.5
Material: Steel
Post Total Length: 72"
Post Spacing: 6' 3"
Blockout Type: Wood
Blockout Depth: 8"
Aesthetic: No
Application: Other
Special Configuration: None
