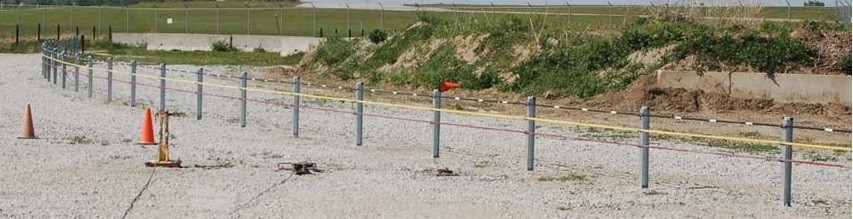

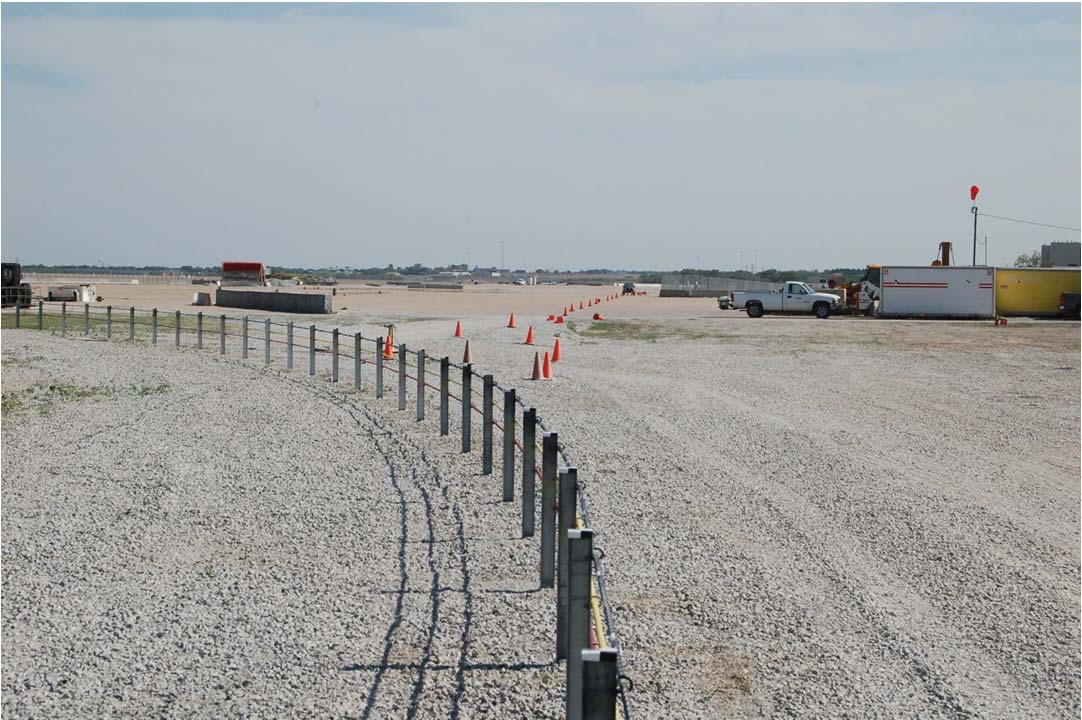

TL-3 New York Low-Tension Three-Cable Barrier on Curved Alignment

Report Number(s): TRP-03-263-12

Description: Post Material: Steel. Post Spacing: 8 ft. The first test was passed with 360ft radius and 27" height. The second test was FAILED with 440ft radius and 27" height. The third test was Passed with 440ft radius and 29" height.

Test Level: 3

Barrier Type: Low Tension

MASH Test Number: 3-11

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: New York State Department of Transportation

Test Article Description

MASH Version: MASH09

Post Spacing: Input: ≤ 10

Post Material: Steel

Aesthetic: No
