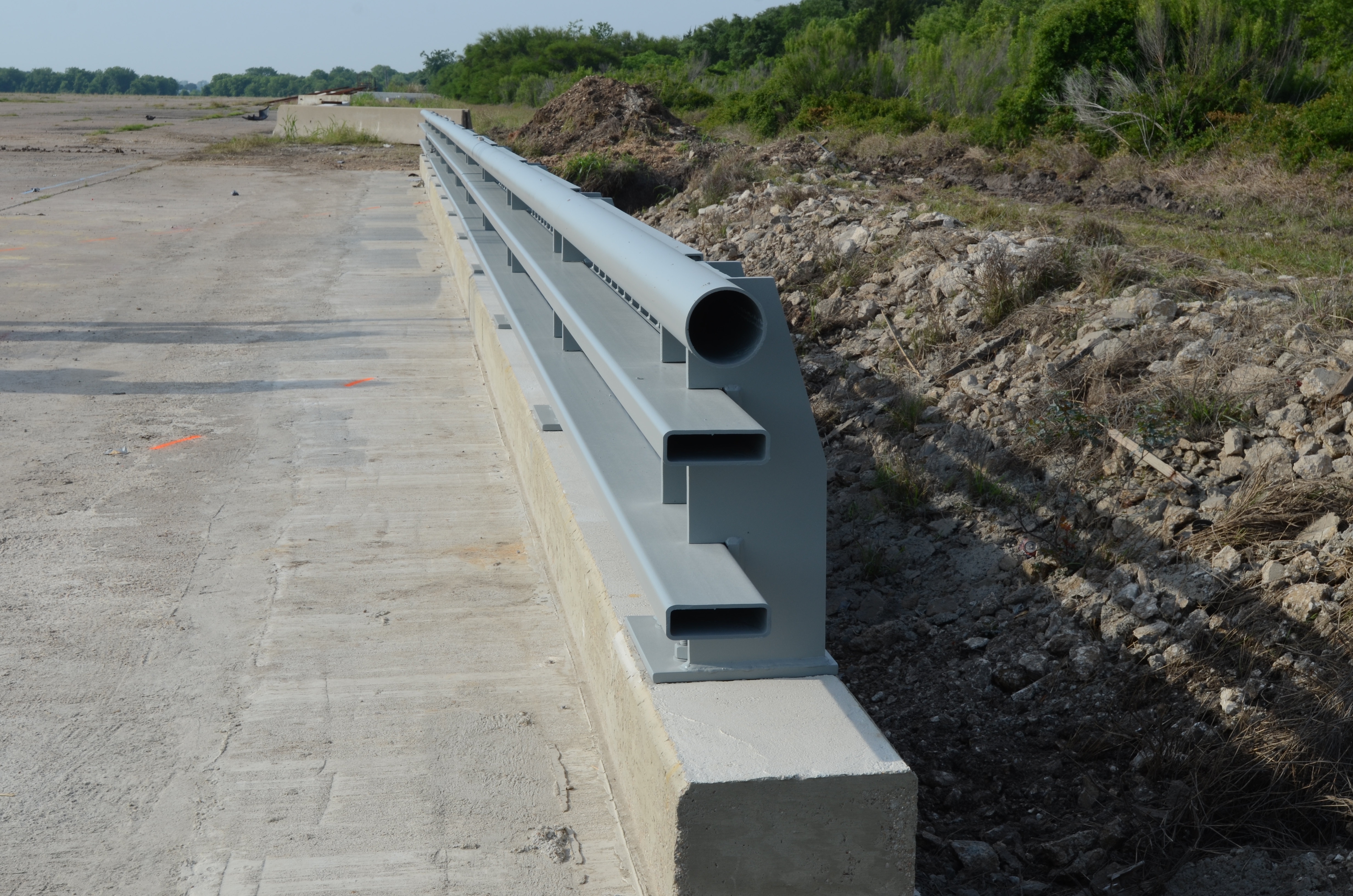

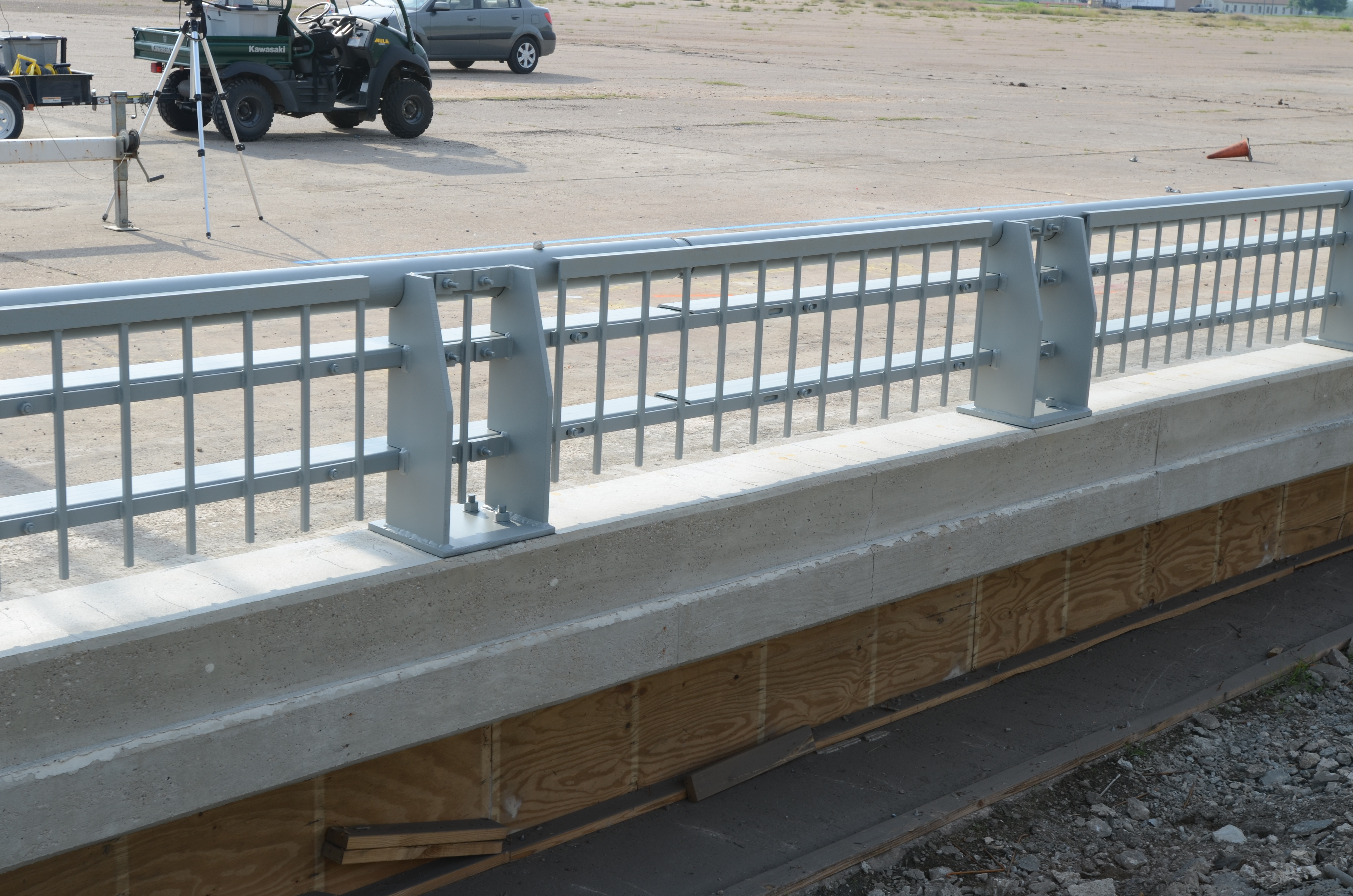

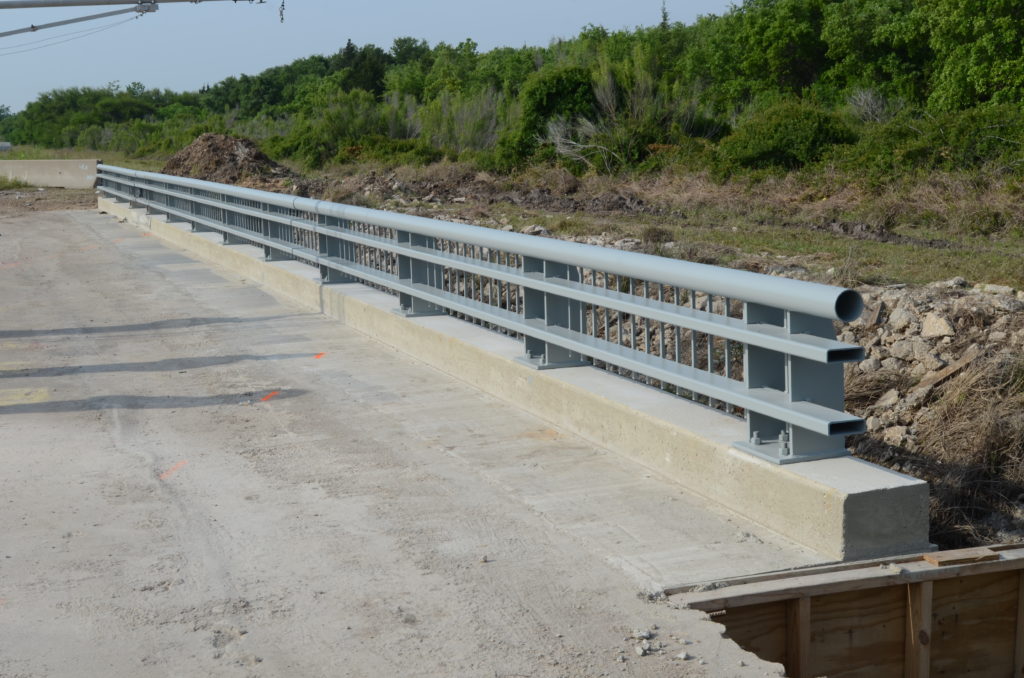

TxDOT Type T1P (Picket Rail)

Report Number(s): FHWA/TX-12/9-1002-12-2

Description: TxDOT steel rail with picket panels and opt drains (36" tall)

Test Level: 3

Barrier Type: Aesthetic

MASH Test Number: 3-10, 3-11

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Texas Department of Transportation

Test Article Description

Height: 36"

Deck Thickness: 8"

Test Article Description

Material: Combination

Mounting Type: Curb

Aesthetic: Yes

See Through: Yes

Retrofit: No

Combo. (Veh/Ped): No
