TxDOT Type T131RC

Report Number(s): FHWA/TX-12/9-1002-12-1

Description: TxDOT retrofit guide for curbed structures

Test Level: 3

Barrier Type: Steel Post and Beam

MASH Test Number: 3-11

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Testing + Engineering Analysis

Sponsor: Texas Department of Transportation

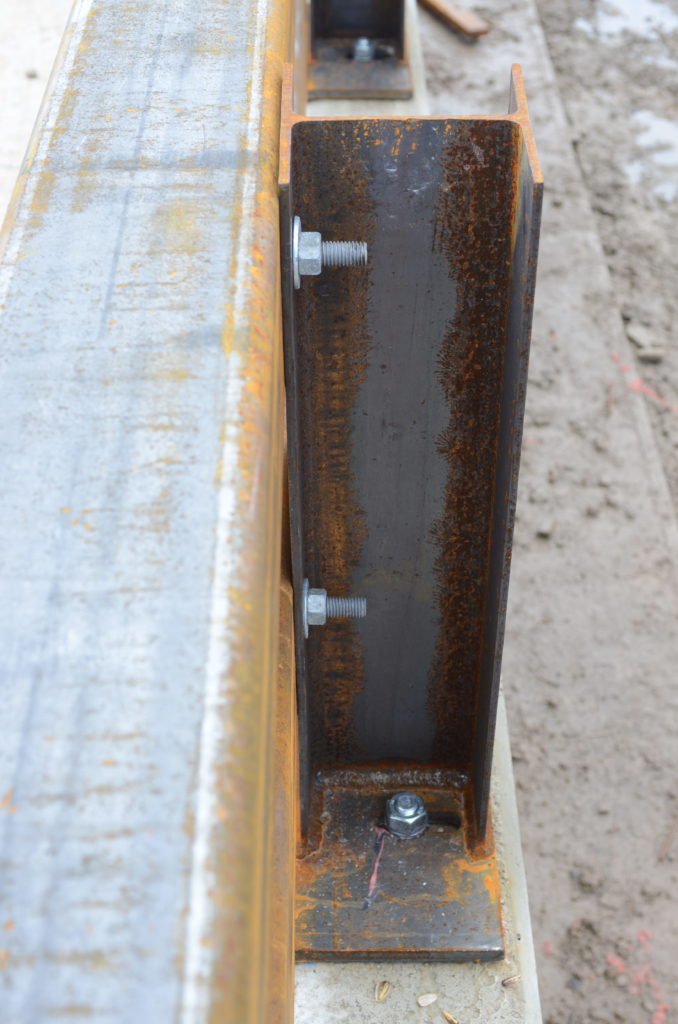

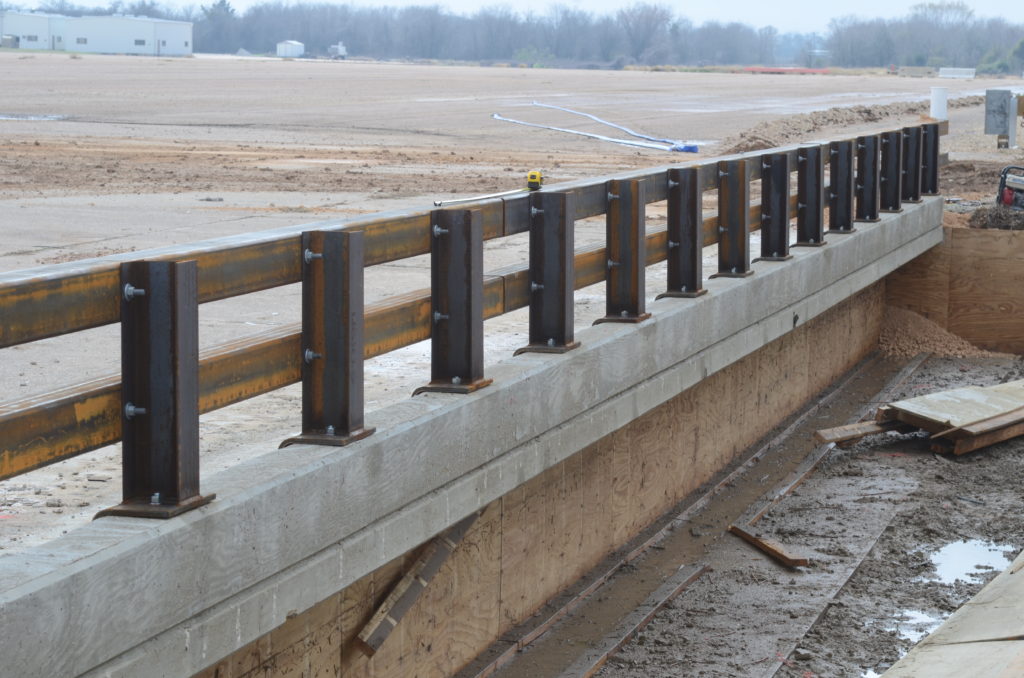

Test Article Description

Height: 36"

Deck Thickness: 6"

Test Article Description

Material: Combination

Mounting Type: Curb

Aesthetic: No

See Through: Yes

Retrofit: Yes

Combo. (Veh/Ped): No


490022-1 Report acrobat-icon
