TxDOT Type T224 (42″ tall)

Report Number(s): FHWA/TX-15/9-1002-15-5

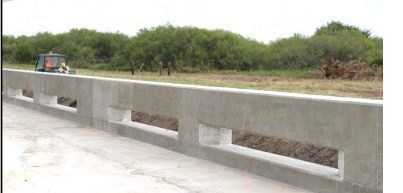

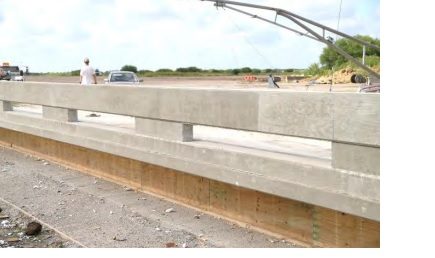

Description: TxDOT concrete beam and post w/ 10' openings (42" tall)

Test Level: 5

Barrier Type: Concrete Post and Beam

MASH Test Number: 5-10, 5-11, 5-12

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Texas Department of Transportation

Test Article Description

Height: 42"

Deck Thickness: 8.5"

Test Article Description

Material: Concrete

Mounting Type: Deck

Aesthetic: Yes

See Through: No

Retrofit: No

Combo. (Veh/Ped): No

Report(s):

9-1002-15-5-T224
