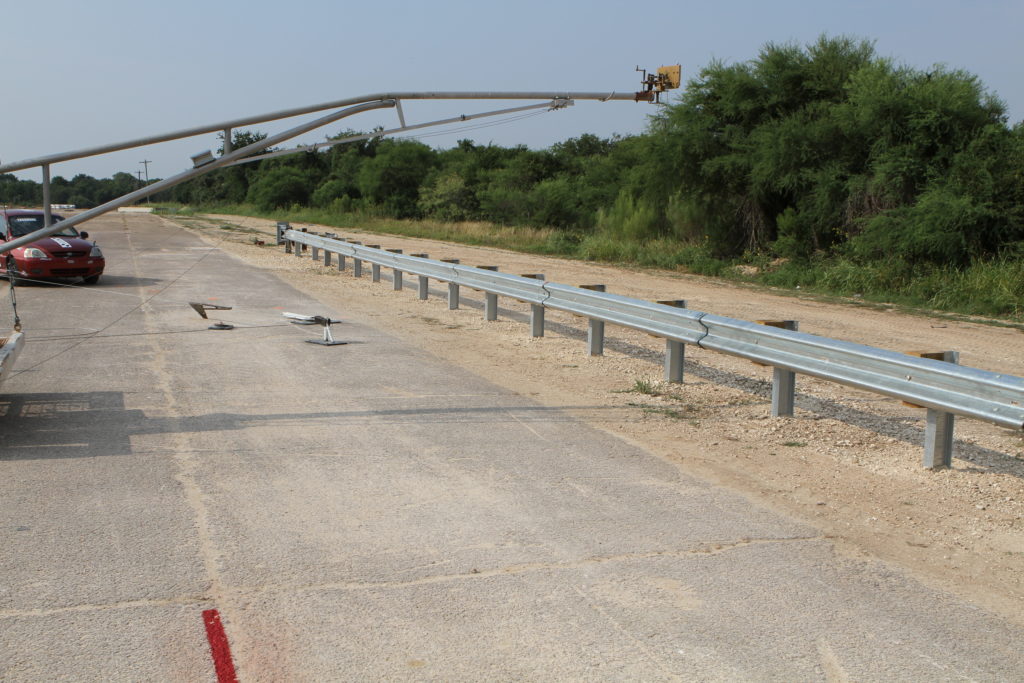

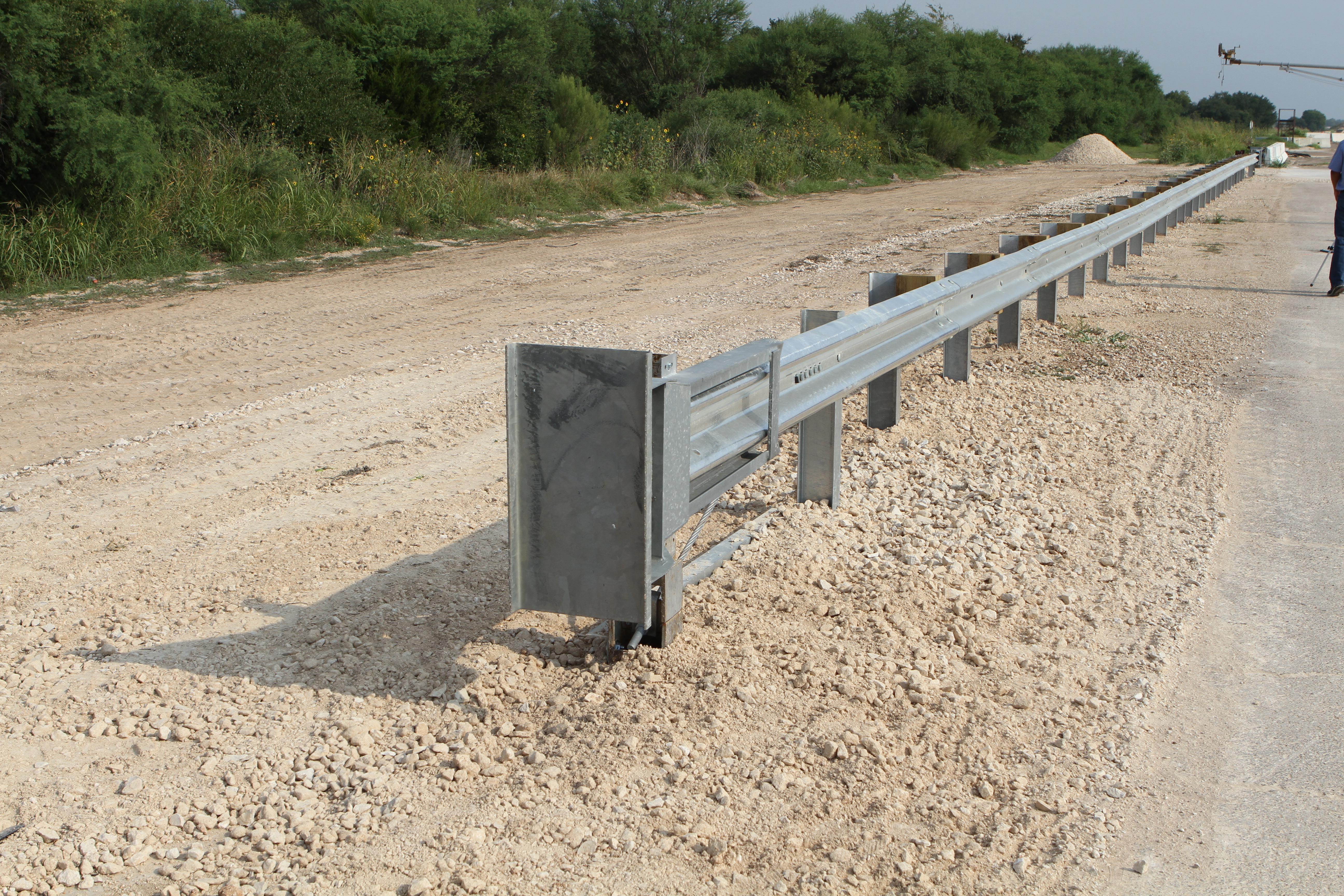

31-inch Tall W-Beam Guardrail with Standard Offset Blocks

Report Number(s): 9-1002-4

Description: 31-inch tall W-beam guardrail with standard offset blocks

Test Level: 3

Eligibility Letter: B240

MASH Test Number: 3-10

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Texas Department of Transportation

Test Article Description

Height: 31"

Rail Type: W-Beam

Rail Thickness: 12-Gauge

Post Type: W6 x 8.5

Material: Steel

Post Total Length: 72"

Post Spacing: 6' 3"

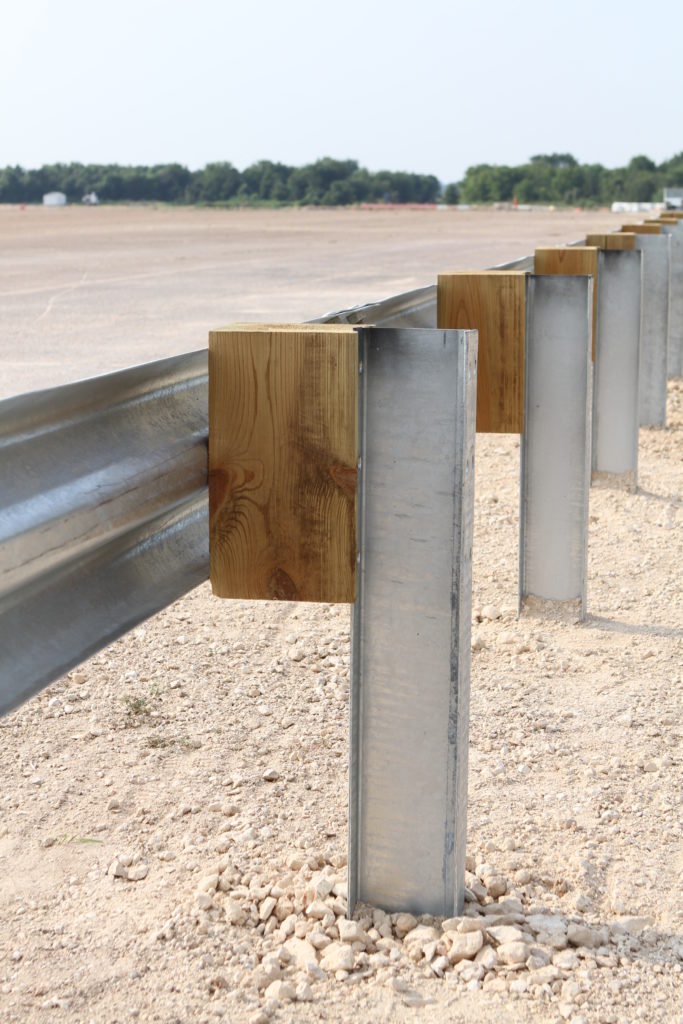

Blockout Type: Wood

Blockout Depth: 8"

Aesthetic: No

Application: Other

Special Configuration: None
