31-inch Tall Guardrail to Concrete Barrier Transition System

Report Number(s): TRP-03-175-06

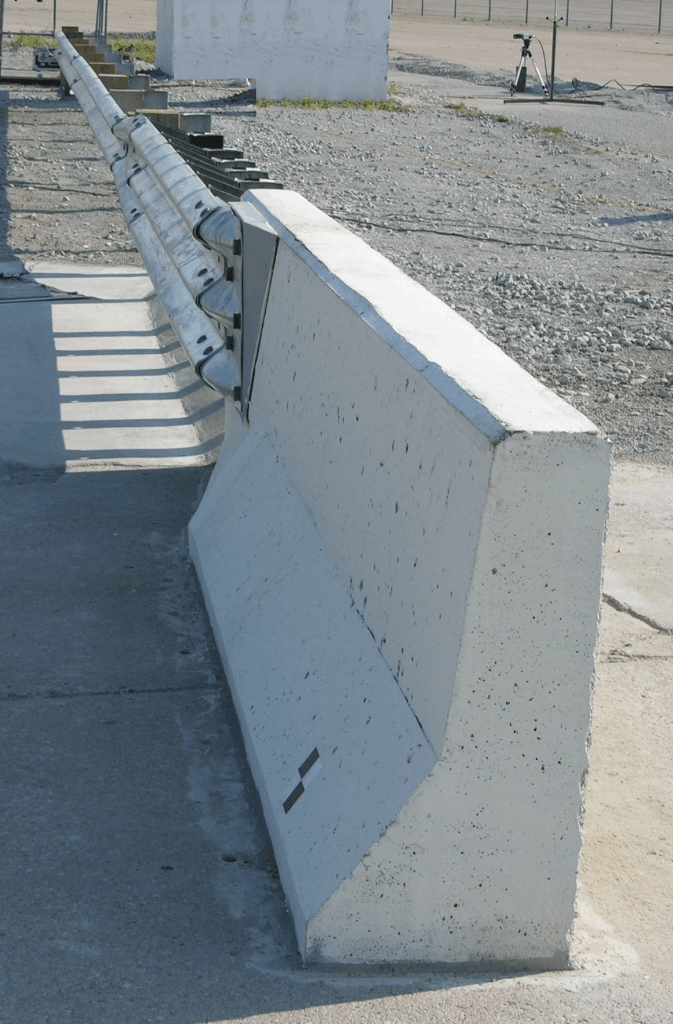

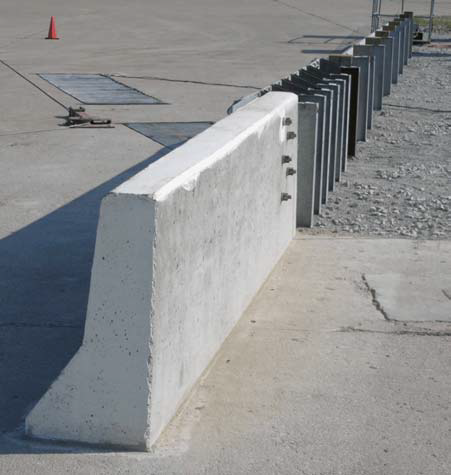

Description: Approach Guardrail Transition to a New Jersey Safety Shape End Section with Curb

Test Level: 3

Eligibility Letter: B214

System Type: Guardrail to Concrete

MASH Test Number: 3-21

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: National Cooperative Highway Research Program

Test Article Description

Transition Type: Thrie Beam

Nested: Yes

Rubrail: No

Rubrail Nested: No

Height: 31"

Post Material: Steel

Top Rail Blockout Depth: 8"

Curb Present: Yes
