34-Inch Tall Thrie Beam Transition to Concrete Buttress

Report Number(s): TRP-03-367-19

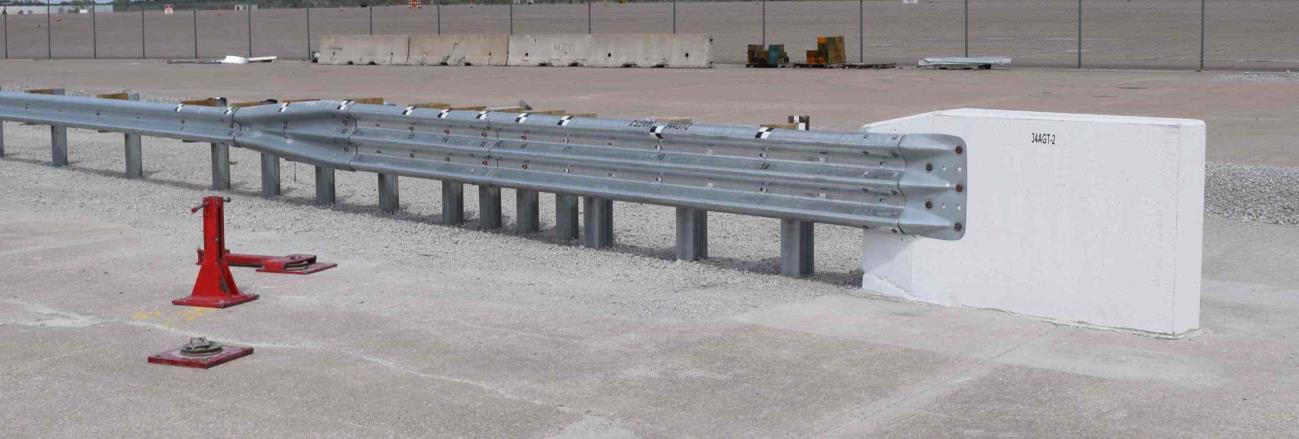

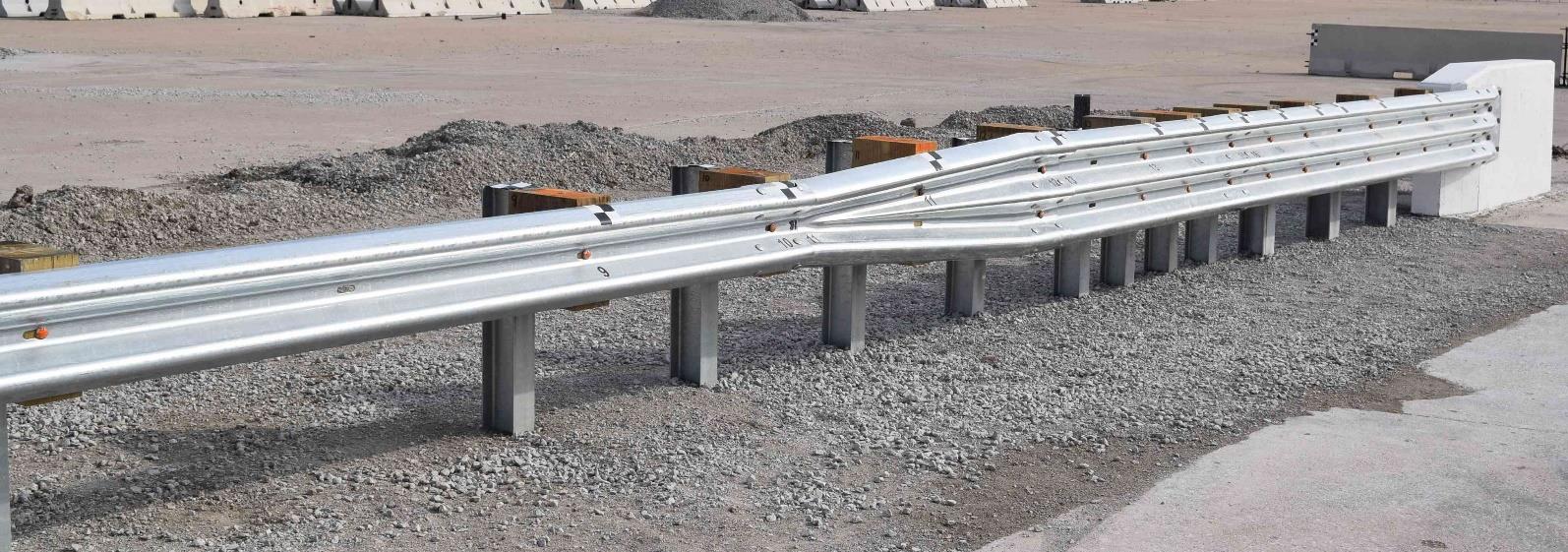

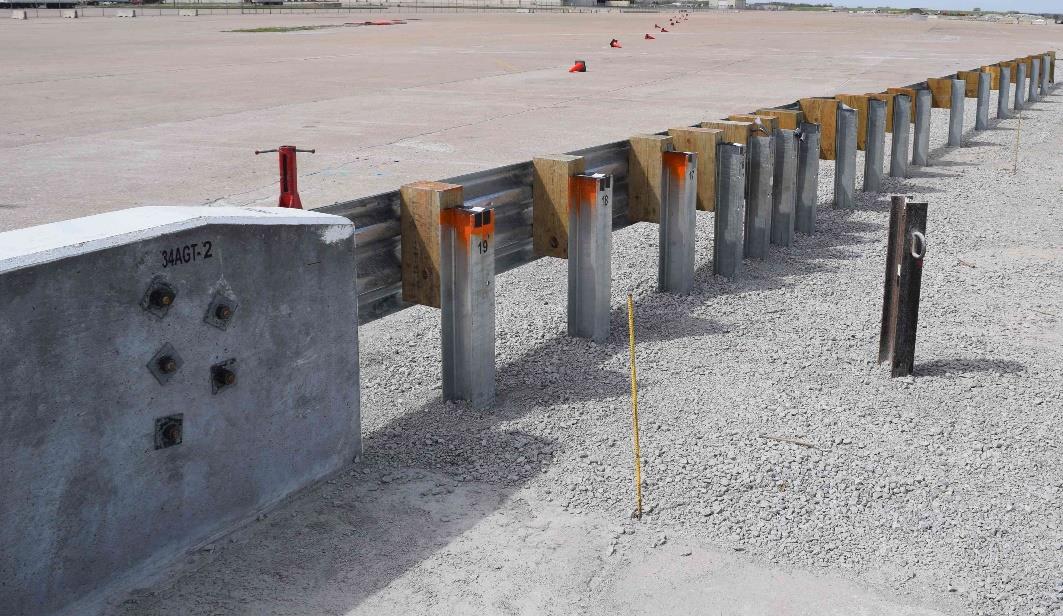

Description: The test installation was approximately 87 ft long and consisted of four major components: 1) a modified version of the standardized transition buttress, 2) the new 34-in.  tall AGT, 3) standard MGS, and 4) a guardrail anchorage system

Test Level: 3

System Type: Gardrail to Concrete

MASH Test Number: 3-21, 3-20

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Nebraska Department of Transportation

Test Article Description

Transition Type: Thrie Beam

Nested: Yes

Rubrail: No

Rubrail Nested: No

Height: 34"

Post Material: Steel

Top Rail Blockout Depth: 8"

Curb Present: No
