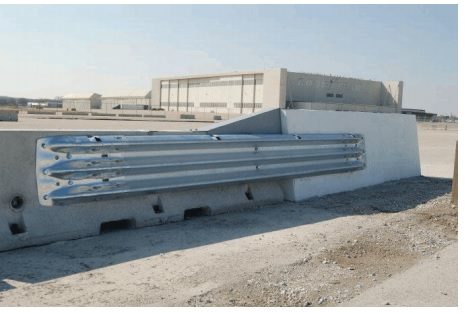

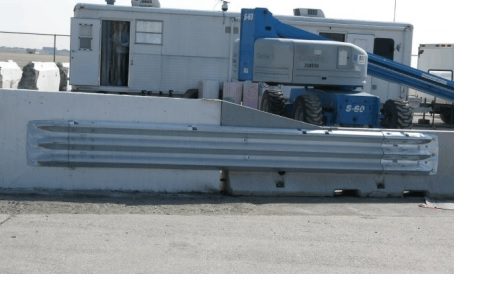

Temporary F-Shape and Permanent Median Barrier Transition

Report Number(s): TRP-03-208-10

Description: End-to-End Approach Transition between F-shape Temporary Concrete Barrier and Permanent Concrete Median Barrier.

Test Level: 3

Eligibility Letter: B41A

System Type: Concrete to Concrete

MASH Test Number: 3-21

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Testing + Engineering Analysis

Sponsor: Midwest States Regional Pooled Fund Program

Test Article Description

Transition Type: Thrie Beam

Nested: Yes

Rubrail: No

Rubrail Nested: No

Post Material: None

Top Rail Blockout Depth: None"

Curb Present: No


TCBT-1 Report acrobat-icon

TCBT-1 FHWA Eligibility Letter B41a acrobat-icon
