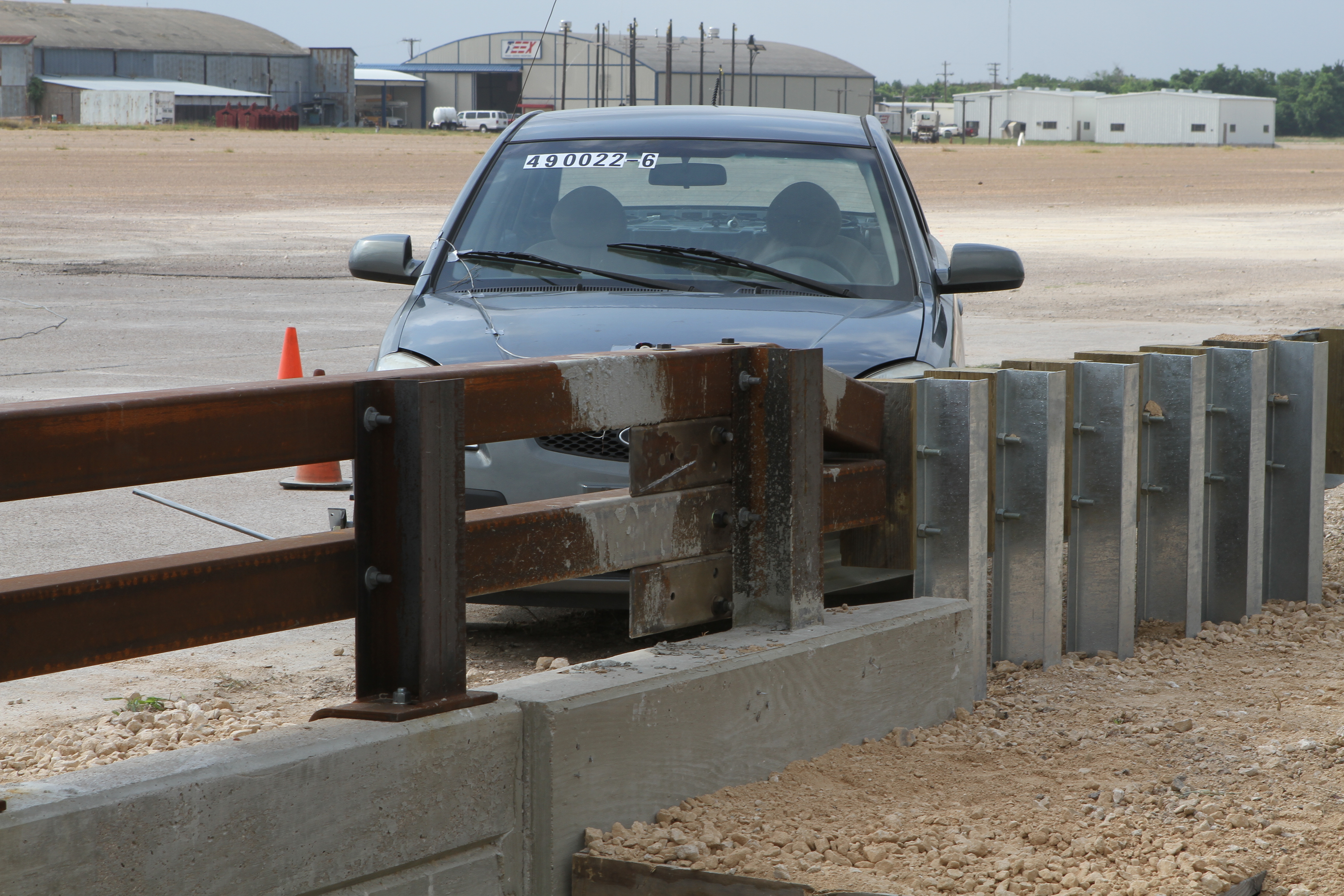

31″ W-Beam Guardrail to TxDOT T131RC Bridge Rail Transition

Report Number(s): 9-1002-12-4

Description: W-beam to thrie beam asymetric transition to nested thrie beam on W6 x 8.5 x 84-in posts

Test Level: 3

System Type: Guardrail to Bridge Rail

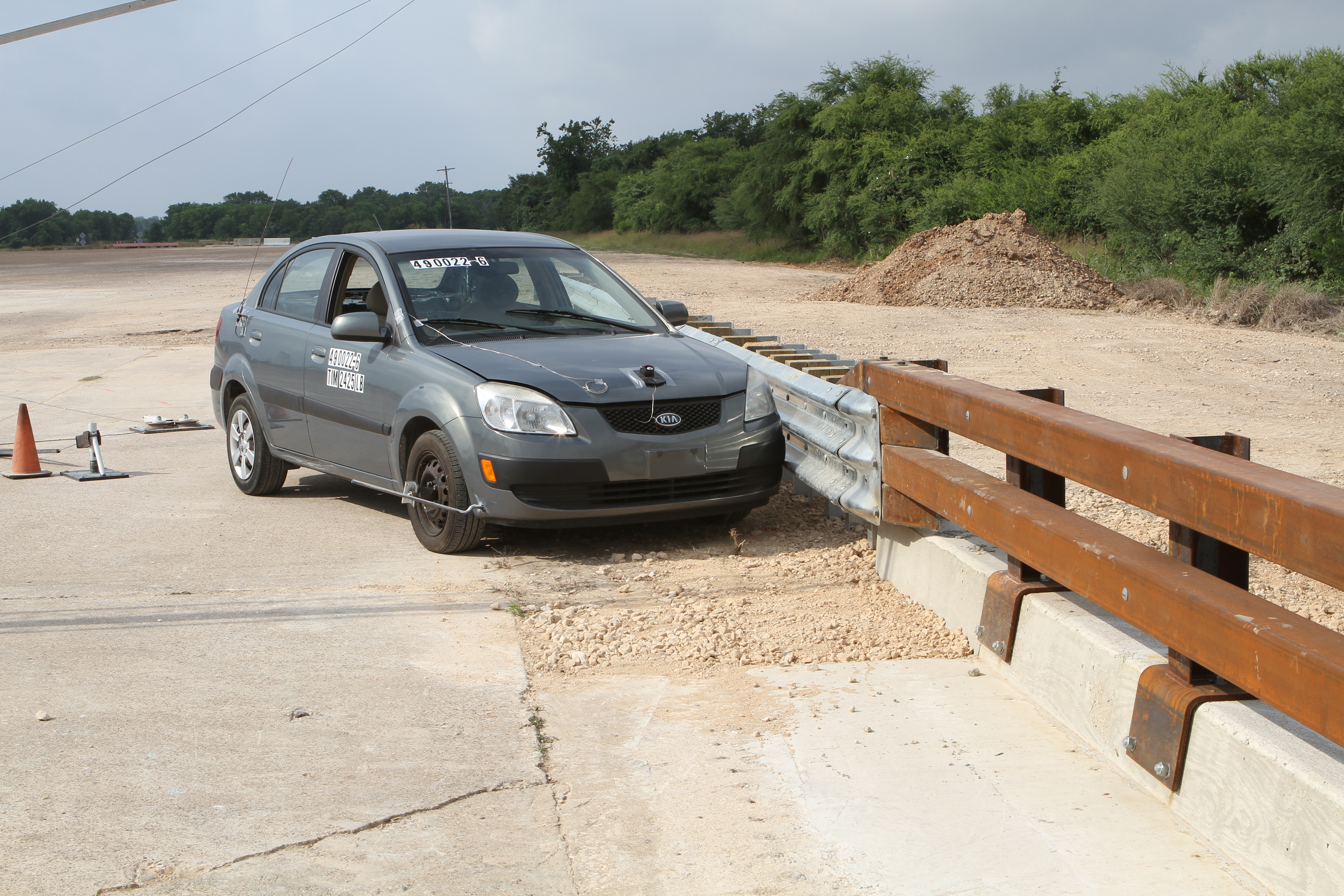

MASH Test Number: 3-21, 3-20

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Texas Department of Transportation

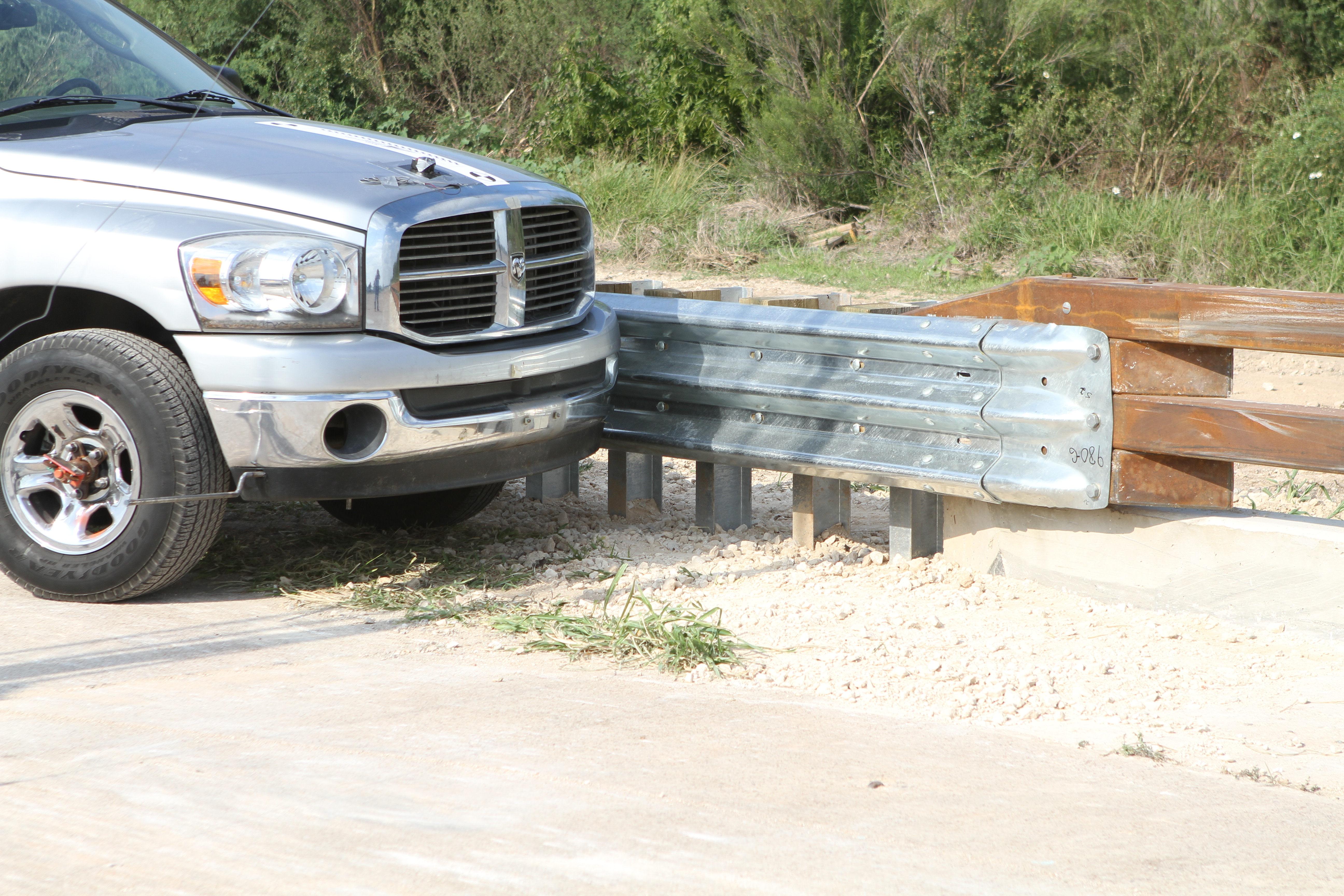

Test Article Description

Transition Type: Thrie Beam

Nested: Yes

Rubrail: No

Rubrail Nested: No

Height: 31"

Post Material: Steel

Top Rail Blockout Depth: 8"

Curb Present: Yes


9-1002-12-4-T1131 Transition Draft Submittal acrobat-icon
