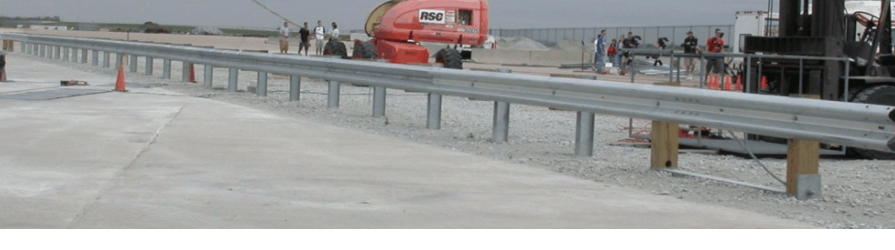

31 inch MGS (Midwest Guardrail System)

Report Number(s): TRP-03-170-06, TRP-03-171-06, TRP-03-172-06

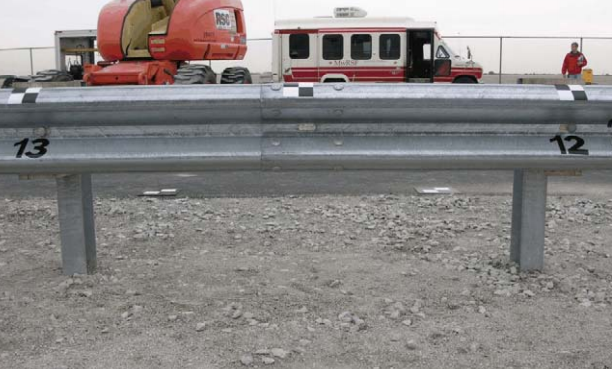

Description: 31-inch MGS with steel posts, with splices off the posts

Test Level: 3

Eligibility Letter: B212

System Type: Guardrail

MASH Test Number: 3-10 (tested at 32" rail height), 3-11

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: National Cooperative Highway Research Program

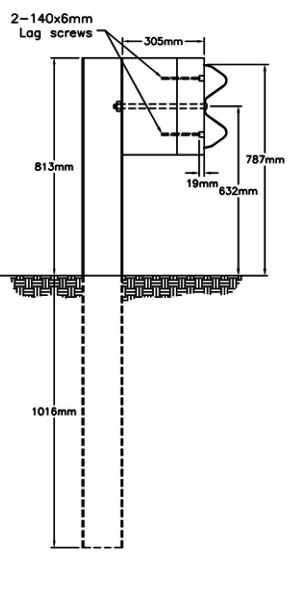

Test Article Description

Height: 31"

Rail Type: W-Beam

Rail Thickness: 12-Gauge

Post Type: W6 x 9

Material: Steel

Post Total Length: 72"

Post Spacing: 6' 3"

Blockout Type: Wood

Blockout Depth: 12"

Aesthetic: No

Application: Other

Special Configuration: None
