MASH Evaluation of F-Shape and Single-Slope Concrete Barriers with Drainage Scuppers (Supplemental) (612831/Task Order DK)

<<Back to Search Results


Final Report Link: MASH Evaluation of F-shape and Single-Slope Barriers with Drainage Scuppers


TTI Research Supervisor:
Nauman M. Scheikh, P.E.
Associate Research Engineer
Texas A&M Transportation Institute
TAMU 3135
College Station, Texas 77843-3135
(979) 317-2695
[email protected]
Pooled Fund Technical Representative:
Tim Moeckel
Washington State Dept. of Transportation
Development Division
P.O. Box 47329
Olympia, WA 98504-7246
(360) 704 6377
[email protected]


Washington State Department of Transportation (WSDOT) desired to evaluate F-shape and single slope concrete barriers with 6-inch tall drainage scuppers for compliance with American Association of State Highway and Transportation Official’s (AASHTO) Manual for Assessing Safety Hardware (MASH) evaluation criteria. The F-shape was a temporary concrete barrier with pin-and-loop connection. It was evaluated as a free-standing and a pinned-down barrier system on asphalt pavement. The single slope concrete barrier was comprised of 12.5-ft precast barrier segments that were connected using the grouted rebar grid connections. The single slope barrier system was embedded 4 inches in asphalt.

The free-standing and pinned F-shape barrier systems were evaluated for MASH Test Level 3 (TL-3) criteria by performing MASH Test 3-11.  The single slope barrier was evaluated for MASH Test Level 4 (TL-4) criteria by performing MASH Test 4-12.

The pinned-down and the free-standing F-shape barriers with drainage scuppers passed the criteria for MASH Test 3-11 for longitudinal barriers. The embedded single-slope barrier with drainage scuppers also performed acceptably for MASH Test 4-12 for longitudinal barriers.

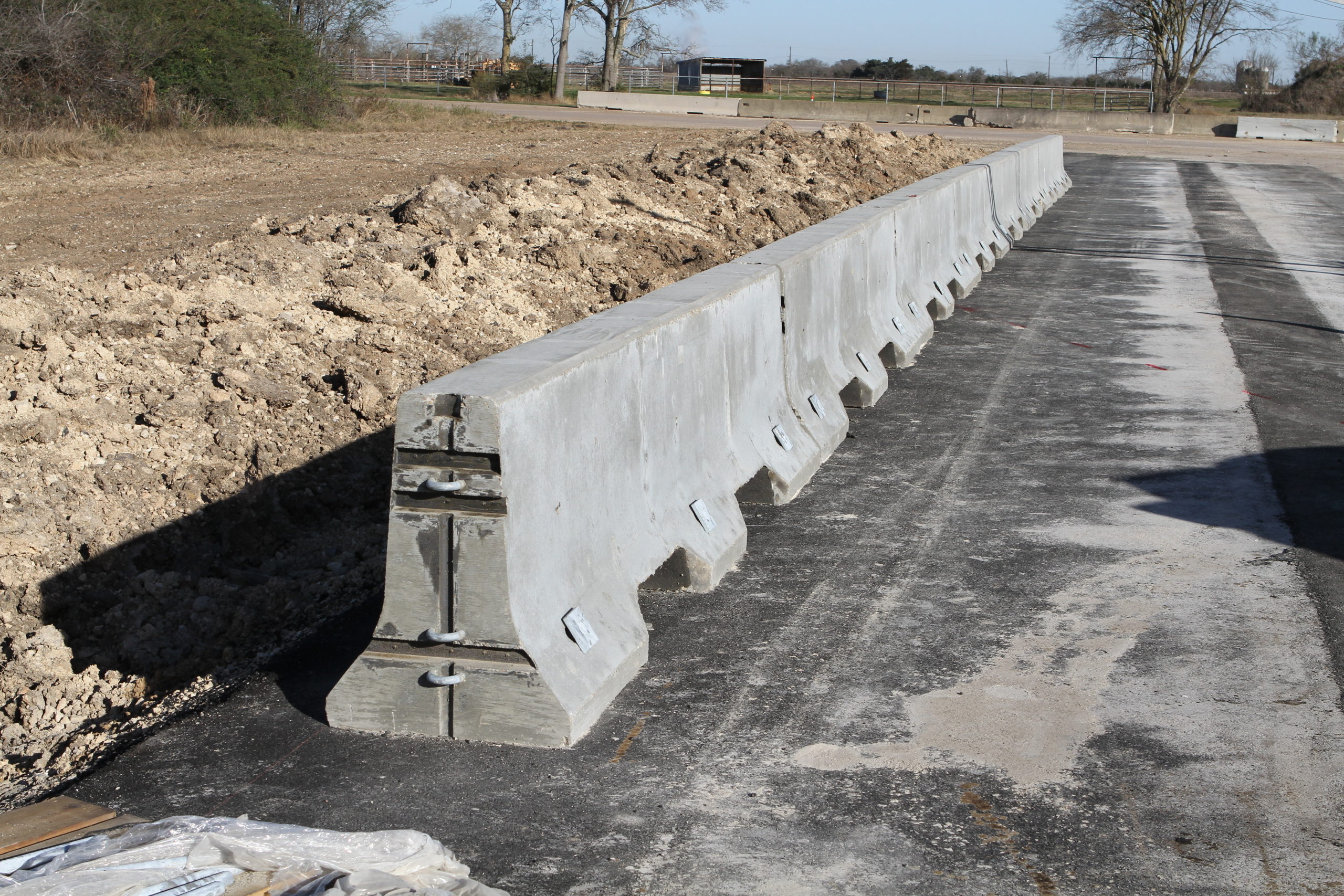

Pinned F-Shape Barrier with Drainage Scuppers

Video Link:

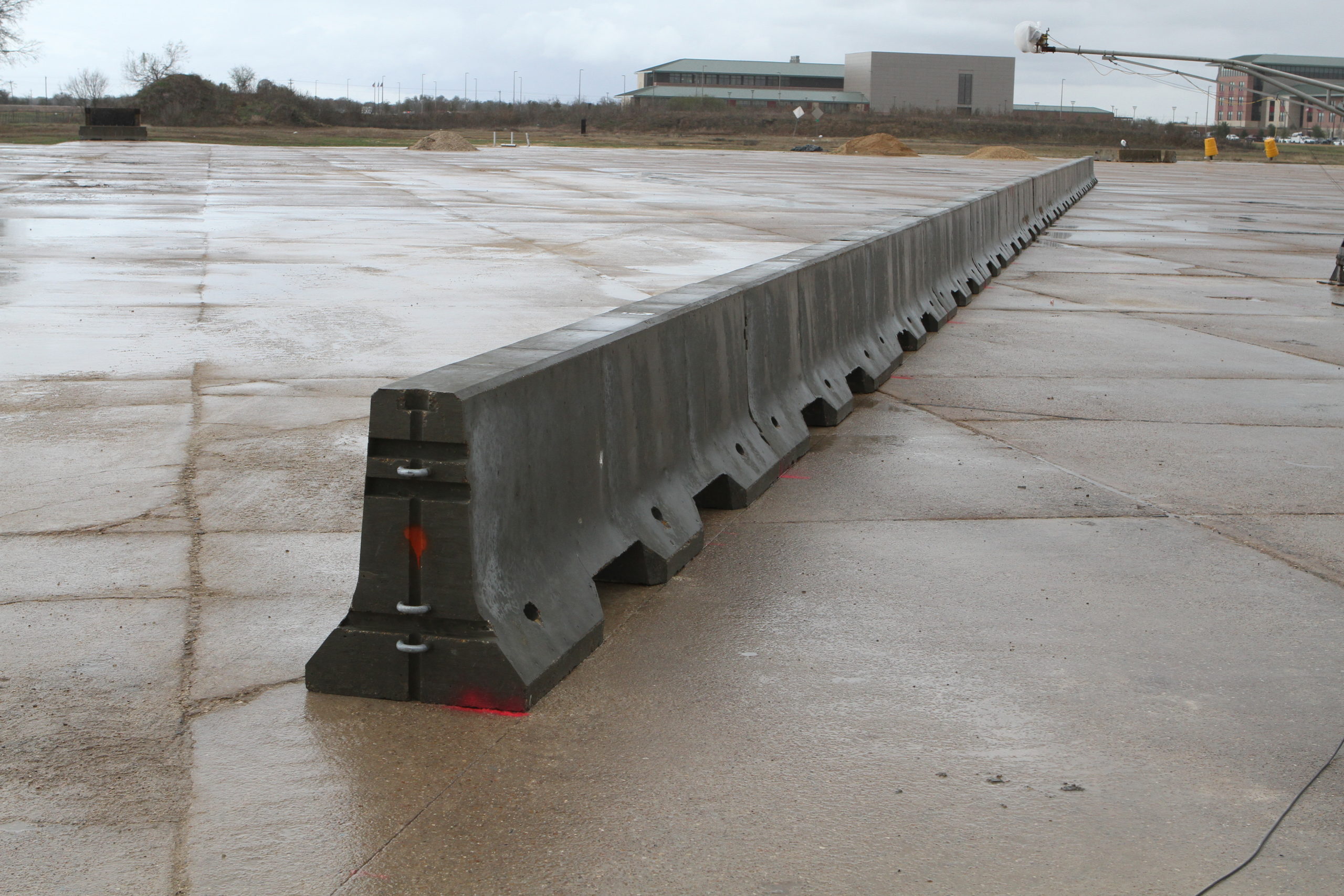

Free-Standing F-Shape Barrier with Drainage Scuppers

Video Link:

Embedded Single-Slope Barrier with Drainage Scuppers

Video Link:
